Insulating Your Old House, Part 2:
How Insulation Works
J. M. Edgar, CMC, CRC
Slowing the transfer of heat from the warm side to the cold side of the building envelope of your old house is the job of insulation. All insulation, no matter its composition, works the same way. It traps small pockets of air. It is the trapped air more than the actual insulation material that provides the insulative effect.
Slowing The Convection Heat Conveyor
Most of the heat loss through your walls is by convection. Studies vary in their estimates of heat loss through convection, but it is somewhere in the 50-70% range. The primary job of insulation is to dramatically slow the convection heat conveyor. If insulation does only that, it has handled most of your heat movement issues.
All insulation slows convection by dividing the one big air cavity in your wall into thousands of tiny cavities or cells. Each of these cells will convey heat from warm side to cold side through the air trapped inside the cavity, but thousands of cycles are required rather than just one big cycle. This greatly increases the amount of time it takes for heat to transfer all the way through your wall — as much as 20 times longer. Some materials are better convection slowers that others, but all insulation focuses primarily on slowing convection.
Calculating the R-Value of Your Exterior Walls, Ceiling and Windows
What is the R-value of your walls, and do your need to add insulation? Determining the R-value of your walls is not rocket science. Anyone can do it with fair accuracy using the right tool on a cold winter day.

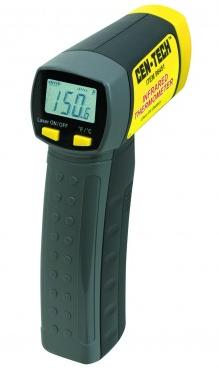

The right tool is an infrared thermometer.
This is a device that measures the temperature of a surface using a laser beam. The temperature of the surface is displayed on a screen. The devices are not expensive. The one we use cost about $40.00.
The interior and exterior wall surface temperatures and outside air temperatures are measured. By comparing the difference between wall temperatures with the outside air temperature, you can get an estimate of the R-value of the wall using the Table below. This works on any exterior wall whether or not it contains insulation. Even uninsulated walls have some R-value just from the construction materials in the wall.
Infrared thermometers measure an area that gets larger the farther the thermometer is held from the surface. It does not measure the temperature of the exact spot where the laser beam hits, but an average temperature of the area around the beam. The farther away from the surface being measured, the larger the area averaged. If you are looking for an average temperature over a large area of wall, hold it about 3-4 feet from the wall. If you are looking for specific areas of air infiltration or voids in your insulation, you need to be about 1 foot away.
Avoid areas that may be affected by radiators, heating ducts or lights. Take these measurements in the evening or a couple of hours after dark to reduce the affect of solar radiation on the wall that may warm the wall several degrees and give a false result.
Test when the outside temperature is very cold. Below zero is best for the most accurate results.
Step 1: Outside Air Temperature.
Go outside and aim the thermometer at outside objects, tree trunks, for example or fences to determine the ambient outside temperature. Do not aim at an exterior house wall. Or just read it from your outside thermometer if you have one.
Step 2: Interior Wall Temperature.
Aim the thermometer at an interior wall to get the interior temperature. An interior wall is one that is heated on both sides and in the same room as the exterior wall to be tested. If you are testing a long wall, you may have to do this for each room along the length of the exterior wall to be tested.
Step 3: Exterior Wall Temperature.
Aim the thermometer at the inside of the exterior wall to be tested to get the exterior wall temperature. Measure the temperature on the inside of the wall.
Step 4: Temperature Difference.

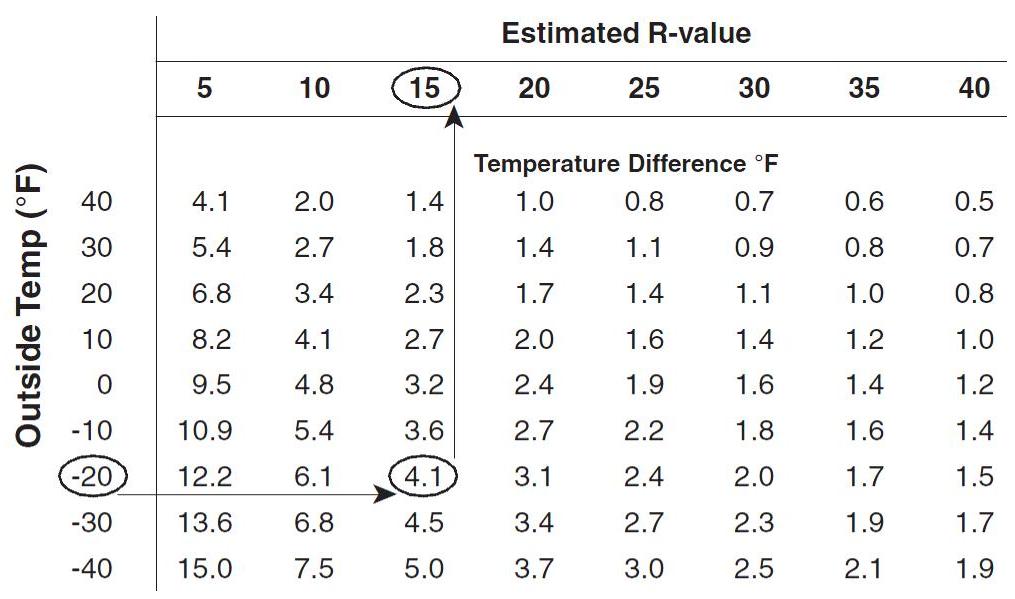

Subtract the exterior wall temperature from the interior wall temperature. Use this result to determine the R-value of the wall from the table below.
For example, if the interior wall is 70° and exterior wall is 66°, the difference is 4°. If the temperature outside is -20°, the estimated value of the insulation in the wall is just under R-15. (See table, above).
Ceiling and Windows:
Ceilings and windows can be measured the same way. For ceilings your exterior temperature measurement should be of a ceiling with the lights off and allowed to cool. For windows, take the temperature of the glass near the center.
To find air leaks, take the temperature of outlets, around windows and doors, along the base of the wall and other places where leaks are likely. If the temperature differs a few degrees from the overall wall temperature, you probably have an air leak or at least an area that is not well insulated.
Source: C. Pedersen and K. Hellevang, "Determining Insulation and Air Infiltration Levels Using an Infrared Thermometer", North Dakota State University Extension Service, March, 2010. (Download PDF)
If creating tiny air pockets was all that was needed from insulation, then any material would work. We could use something like aluminum or copper foam, for example. But, aluminum and copper don't work as insulation because these metals are very good heat conductors. Heat simply flows around the air pockets moving from molecule to molecule through the metal.
To be effective, the insulation material itself must be a relatively poor heat conductor — that is, a good insulator. Almost all insulation materials are lousy heat conductors — which is why they are used as insulation. Some, however, are better insulators than others. The plastic in foams is probably the best insulator, followed by the paper that makes up most of cellulose insulation. Fiber glass and rock wool are the poor insulators. Fiber glass and rock wools insulate by trapping air pockets, and it's the trapped air that is the insulator. The tiny glass and rock fibers actually transmit heat fairly well, but they are so tiny that very little heat is actually transferred. Which is why, despite glass and rock being fairly good heat conductors, in the spun fiber form used in insulation, the material as a whole works pretty well — but not as well as form nor as well, dollar for dollar, as cellulose.
Heat radiation out of your house in Winter, and into your house in Summer is bad. Either event moves heat in the wrong direction. Radiation into your house in Winter, and out of your house in Summer is good. It helps move heat where we want it. Unfortunately no one has yet come up with a unidirectional radiant barrier; one that blocks only radiation moving in the wrong direction. Luckily heat loss and gain through radiation is not a big problem in our area like it is in the desert Southwest and parts of the South. This is good for us because all radiation blocking materials now in common use have significant drawbacks.
Blocking Air Infiltration
Insulation helps stop air transfer by plugging leaks. The EPA estimates that 15-40% of your heat loss is through air movement. So insulation that is good at plugging air leaks is better than insulation that is not. Some insulation is better at this than others. The foam materials are good leak blockers, as are cellulose and rock wool. Blown in fiber glass is not nearly as good. Even the most effective wall and attic insulation is not, however, going to take care of the majority of your air infiltration. Most infiltration occurs in the joints around windows and doors rather than through your walls or roof. Blocking it is the job of good weatherization, not insulation. And, weatherization is the subject of another article.
Types of Insulation
So now we know that to be effective, insulation must
Dramatically slow the convection heat conveyor by creating thousands of tiny air pockets,
Be made, preferably, of a material that is itself a very poor conductor of heat,
Do its part to seek out and seal tiny air leaks and
If possible, reflect radiated heat.
If you are building a new house, insulation is normally installed in the walls before the walls are sealed up. This is "open wall" insulation. Open walls give you many more choices of insulation materials and installation methods. The material used in most new construction is fiber glass batts. This is usually spun fiber glass attached to a paper backing. There are many others, and most of these others are actually better insulation than fiber glass. But, since this is an article on insulating old houses, we will leave new house insulation for others to explain.
For old houses the choices are limited to materials that can be blown or pumped or sprayed into existing wall cavities without removing the wall covering — "closed wall" insulation. The usual options are:
Plastic foams which can be pumped into your walls as a liquid, then expand and cure as a rigid, seamless plastic foam similar to the familiar foam coffee cup,
Blown-in particles, which are commonly fiber glass chips, rock wool, and cellulose.
Forms can be sprayed into closed wall cavities by trained and experienced applicators. Although DIY kits are sold on the internet, this is not a job for a novice. Considerable experience is needed to judge when there is just enough foam in the wall to completely fill the cavity, while stopping short of blowing the wall out — which is entirely possible with a product that expands to as much as 120 times its liquid volume, generating considerable pressure in the process. We have also noted that the DIY foam kits cost almost a much per cubic foot of insulation as having a certified professional apply the foam. There is very little cost savings, if any, doing it yourself.
The most common petro-foams are isocyanurate and
polyurethane. Both can cure to an open cell or closed cell structure. Open cell structures allow water to penetrate the insulation. Closed cell materials do not, and in many localities closed cell polyurethane foams can be used as a vapor barrier. Closed cell structures are also better at blocking convection. The R-value of open cell foam is about 3.5 per inch — no better than the R-value of cellulose or blow-in fiber glass. Closed cell foam is a much better insulator. When newly installed it has an R-value of about 8 per inch. But, over time the value drops to about R-6.25 per inch as the hydro fluoro compounds in the cells leak out and are replaced by air. In a typical 2"x4" stud wall, open cell foam provides a center-of-cavity thermal resistance of about R-13, the same as dense-pack cellulose or fiber glass. Closed cell about R-21.
Given that closed cell foams are so much more effective as insulation, why would anyone choose open cell foam? The answer is that closed cell formulations are quite a bit more expensive, up to four times the cost for just 50% more insulation. They do not expand nearly as much as open cell foams, so more material is required. But, where the cavity is narrower than the standard stud wall depth of 3-1/2 to 3-7/8 inches, closed cell foam may be the only option that gets you the R-value you need.
The foams are stellar at finding and penetrating every nook and cranny in a wall cavity. No other material is quite as effective in completely filling the wall. Foams have disadvantages however.
Petro-foams are not at all environmentally friendly. They are made out of petroleum, and use hydro fluoro compounds (HFCs) as blowing agents. Although much more chemically friendly than the urea-formaldehyde foam formulations from the 1970's, these new foams still contain some nasty materials such as benzene and toluene. These unavoidably get into the air during application and by outgassing as the foam ages. According to the EPA, HFCs are 12,500 times more potent than carbon dioxide in producing global warming and some are targeted by the Kyoto Protocol for eventual elimination.
Foams give off some highly toxic gases when in contact with fire — gases that can kill you rather quickly. They are the only commonly used insulation material that is an actual danger in a fire. All building codes now require that foams be completely covered by a material that provides at least 15 minutes of fire protection — standard drywall is the usual choice.
Foams are expensive — up to five times the cost of cellulose.
Some manufacturers have started a switch to bio-oils to replace some of the petro-chemicals in foams. Soybean oil is the most popular substitute at the moment. It does not wholly replace petroleum-based chemicals, but at least one manufacturer claims to replace about 96%, and, as a bonus, uses water as a blowing agent rather than HFCs. While much, much greener than the petro-foams, these products are also much more expensive, and less insulating than petro-foams. And, blowing water into a closed wall is a risky proposition. If too much is used and it persists in liquid form, it can breed mold and mildew. Application by factory trained and experienced workers is an absolute requirement with these products. No manufacturer even offers a DIY kit, and most will sell only to their own trained and certified applicators.
The Igloo Factor
How much heat would you have to add to your house if the walls and roof were almost perfect insulators that allowed virtually no heat transfer? Answer: About one candle's worth.
H alf a lifetime ago, while serving with the 11th Special Forces, during an era that worried about the Soviets overrunning the Alaskan Pipeline from the Siberian Steppes, some chair-warming strategic genius in the Pentagon thought it a grand idea for my unit (most of which had just returned from sunny Southeast Asia) to round out its Army experience by being trained in winter warfare. So the Army sent us on an all expenses paid adventure to the Arctic Ranger School at Ft. Greely, Alaska.
Located about three blocks from the arctic circle, Ft. Greely was quite a change from fetid Asian jungles. But, we learned a lot of interesting new things: how to navigate unnavigable rivers; how to hide in a place where there is no place to hide; how to parachute in a white-out and live to brag about it over beer the next day; and how to survive an arctic blizzard.
The blizzard thing was not actually part of the syllabus, but since nature presented us with a rather impressive blizzard, the opportunity was just too good to pass up — or so our instructors told us. We trainees were a lot less enthusiastic.
You need some deep unpacked snow, a U.S. Army M-1943 "Shovel, Folding w/ Cover, Khaki" (or any other shovel, for that matter), and a candle. After you dig out your cave, climb in and seal the doorway with loose snow. Poke a hole the diameter of your arm near the ceiling for ventilation. Light the candle. In a few minutes the heat from the candle will glaze the ceiling with a thin coat of ice, which prevents dripping as the snow cave warms.
Loose snow is an excellent insulator, containing millions of little air pockets. It allows very little air transfer, and virtually no heat conduction or convection. Very soon the cave warms to the point at which your heavy "Parka, Man's, Arctic, M-65, with M-55 Cover, Camouflage, White" can be removed. A little while later the candle can be extinguished and your body heat alone is enough to stay nice and toasty for the duration of the storm.
This is a good time to catch up on all the sleep you missed since Basic Training. You might be there for a while. These storms can last for days.
Mineral Wools and Fiber glass
The insulation industry considers any insulation composed of mineral fibers the be mineral wool insulation. This includes the common fiber glass insulation products and rock or slag wool. They are made much the same way. Molten material (glass or rock and slag) is spun in a centrifuge to form fibers. The fibers are virtually fire proof and will not support combustion. They will melt, but only at very high temperatures — 1800º F, for rock wool. All can be blown into closed walls.
We hear a lot of nonsense about mineral wools, especially fiber glass. The biggest myth is that they cause cancer. They don't. At one time, after the asbestos scares of the 1970s, rock wool and fiber glass insulation came under suspicion as a possible carcinogen — primarily because they are, like asbestos, mineral fibers. Subsequent studies failed to find any connection between either of these materials and any cancer, and the materials were removed from the list of suspected carcinogens in 2000. Still, neither of these products is good for the lungs, and care should be taken to reduce the amount of material that gets airborne during application. All applicators should wear a UL approved particulate filter mask.
We seldom use either product for blow-in application from inside the house. There is too much risk that small fibers will escape and end up in your carpets and furniture. We use cellulose. If cellulose fibers escape, it is usually of no particular consequence. They are just paper, after all.
Rock or Slag Wool
Modern rock wool is a manufactured product comprised of a mix of limestone, slag waste from steel blast furnaces, and basalt. The proportions of these minerals vary by manufacture, and it may even be composed of 100% waste slag, in which case the product is usually called "slag wool". The fibers that are typically white in color, but may also be gray or even brown.
Because its main component is waste from steel-making that would otherwise be dumped, rock wool is relatively environmentally benign. It does require a lot of energy to produce, but no more so than fiber glass.
The fibers are non-combustible and have melting temperatures in excess of 1800º F, so rock wool is used to prevent the spread of fire and is the primary material in fire-rated ceiling tile and sprayed-on fire-retardant proofing. It is also used as pipe wrap, and thermal insulation in ships, mobile homes, and domestic cooking appliances. Tear apart your kitchen range, and you will probably find rock wool inside. Its use as residential insulation has dramatically declined in the U.S. since the advent of fiber glass. Fiberglass is lighter in weight, easier to handle, and generally less expensive than rock wool. But, rock wool is still widely used in Europe and Asia. And, if you have any insulation in your old house, especially from the 1930s and 40s, it is very likely to be rock wool — now dirty, dusty and an ugly brown, but still relatively effective insulation.
Rock wool in loose blown-in form for use in attics has an R-value of about 2.5 per inch, equivalent to blown-in fiber glass or cellulose. Rock wool tends to settle due to its relatively great weight, so generally more than is needed is blown in to account for eventual settling.
The bottom line on the rock wools is that fiber glass is lighter, less expensive to buy and cheaper to install, and generally more a more effective insulator than rock wool, so, unless you have a special need for the particular properties of rock wool, fiber glass is usually a better choice.
Loose fiber glass suitable for blowing in attics has an R-value of about 2.5 per inch. In the chopped-up form ("prime" fibers) used to blow in walls, fiber glass compares to cellulose at about R-3.5 per inch. Fiber glass can have a greater R-value, up to 4.0 per inch, if it is in the form of batts, especially when backed by Kraft paper or foil. But, in these forms, fiber glass cannot be blown into a closed wall. You will get about R-13 blowing it into a standard 2"x4" stud wall.
Fiber glass insulates by trapping air in pockets. The glass fibers themselves are not insulating — in fact glass is a fairly good conductor of heat. Nor does fiber glass fill niches and crannies as well as foam or cellulose. Its relatively large fibers tend to clump and leave voids around pipes, electrical wires and electrical boxes in walls. The cavities formed by fiber glass are also relatively large compared to cellulose. When wet, fiber glass loses much of its insulation value, but regains it when it dries. It is glass, so not attractive to bugs as a food source. It is also absolutely fire resistant. Glass can melt, but it will not burn.
The material is about twice as expensive as cellulose, but it is much less expensive than any of the foams or rock wools.
Unlike fiber glass, the material in cellulose insulation — essentially shredded paper — is itself insulating. It does not rely only on trapped air to provide its insulating effect. It is made out of 80-85%% shredded post-consumer newsprint, and is generally considered the "greenest" of the common insulation materials. The Cellulose Insulation Manufacturers Association (CIMA) claims that insulating a 1500 square foot house with cellulose will recycle as much newspaper as an individual will consume in 40 years. We always take trade association claims with a large grain of salt — but in this case, after a few minutes work on the construction calculator, we figure the claim sounds about right.
The finely shredded paper fibers are chemically treated with non-toxic borate compounds to resist fire, insects, mildew and mold. Borates are a naturally occurring minerals. There are virtually no petrochemicals in cellulose — another "green" plus. Cellulose also uses less energy in its manufacture than fiber glass. In eco-speak, it has less "embedded energy" than any other insulation material. Fiber glass and rock wool manufacturing requires about five times more energy.
Properly treated cellulose is permanently fire resistant. Treated cellulose will not burn, in fact, it will barely char. Independent laboratory tests have repeatedly confirmed that cellulose is safe and is approved by all building codes for use in exposed applications — unlike the foams which must be covered with a fire-resistant material. All commercially available cellulose is UL rated for safety. We used to demonstrate the fire resistance of cellulose by holding a clump in one hand, placing a penny on top and melting the penny with a propane torch. The top 1/4" of the cellulose would be charred, but under the char the cellulose was pristine — in fact it was barely warm. Try this test with fiber glass only if your Blue Cross/Blue Shield is fully paid up. (In fact, don't try it at all, just take our word that it will work).
But, mistakes in manufacturing do occur and cases have been reported of cellulose igniting when exposed to flame and, in at least one reported instance, an electrician's trouble light. The best guarantee against improperly treated cellulose is the torch test (See illustration at left) applied to each bundle of cellulose before it is installed.
Unlike fiber glass or any of the foams, cellulose is hygroscopic. It’s able to soak up and retain liquid water. If undetected and untreated, it can be a growing bed for mold and mildew even though the borate treatment given to cellulose kills most mold and mildew. But, the chemicals in wet cellulose can also corrode metal such as nails, pipes and electrical wires over extended periods of time. Of course, if you have this much water in your walls, insulation is probably the very least of your soon to be very many worries.
Because cellulose material is itself insulating, it can be dense packed for even more insulation effectiveness. Fiber glass can be dense packed only to a point, after that further packing actually decreases its insulating value as the tiny air pockets necessary for its effectiveness are eliminated.
Densely packed cellulose blocks air leaks better than blow-in fiber glass, and is second only to the foams at finding and filling all the voids in your walls. The process works much like the sugar dispenser at a restaurant. First the sugar flows freely. Then a large clump or two gets wedged in the opening. A few more smaller clumps collect at the opening, then individual grains pile up around these and the opening is blocked completely so no more sugar comes out. Annoying when you need that morning cup of coffee, but great when filling gaps in cavity walls. While nothing fills cavities like foam, cellulose is a strong runner-up.
At R-3.50 to R-4.0 per inch, cellulose blocks heat transfer better than fiber glass, and just about as well as most, more expensive, open cell foams. It is less efficient than closed cell foams, but also about 1/5 the cost - so the cost-to-value ratio is much better. In a typical 2"x4" stud wall (the wall cavity is usually 3 3/4" in old walls), the rated R-value of cellulose is about R-14, which complies with most modern building and energy code requirements in Nebraska. Taking into account the other materials in your walls, including the thermal breaks caused by your wood studs and other framing, the total clear wall insulation value of a cellulose-insulated wall is about R-15.35. (See below).
Reducing conduction and blocking convection are most of the solution, but not a complete solution to heat movement in and out of your house. There is also the problem of radiation. In the southern parts of the U.S., and especially in the desert southwest, radiation is a primary concern. Not so much in net heating climates like our own. Still, on bight, sunny summer days when sunlight is blasting through your west windows, you may wonder why you did not pay more attention to it.
For old houses, there is, unfortunately, no really good cure for radiation in walls (except to paint your house in a light color — light colors absorb less heat than dark colors). On the bright side, however, radiation through walls is not a prime producer of heat loss and gain. Studies of wall insulation in controlled laboratory settings by the Oak Ridge National Laboratories (ORNL) under contract with the Department of Energy found that including reflective foil in a well-insulated 3-1/2" wall cavity increased its R-value only slightly, from 13.9 to 14.4. In-wall convection, air leaks and heat conduction are much more important than radiation in producing heat transfer in walls.
Your roof, however, is another story. It takes a terrific beating from the sun in summer. So it can be a major contributor to your cooling load. Fortunately it's easier to install radiant barriers in your attic.
Radiant Foil Sheets
None of the traditional insulation materials are of any help. Radiation is not stopped by cellulose, fiber glass, or foams. The only way to combat the effects of radiation is to install a radiant barrier to reflect the radiation away from the house. In new wall construction this is accomplished by using foil-faced batts of fiber glass insulation installed while the walls and ceilings are still open. Foils reflect about 97% of the radiation that strikes them.
In windows the job of reflecting radiation is handled by low-emissivity ("low-e") coatings. These are just reflecting, usually metal, coatings applied to the glass to reflect radiating heat. The are tuned to the specific frequency of heat waves so they block most heat while allowing most light to pass. To learn more about radiant barriers in windows, see: Your Old Windows.
Radiant barriers are usually in the form of paper- or plastic-backed foil sheets that can be stapled to your rafters or laid on top of your existing attic insulation. The Achilles Heel of these products is dust. Dust eventually settles on foil sheets reducing their reflectivity. Sheets stapled to your rafters collect less dust than sheets laid flat, but over time all will collect dust. The less reflective they are, the less they protect. In fact, when covered with a nice thick coat of dust, they become heat collectors, adding to the attic heat problem.
To combat the effects of dust, two or more sheets can be laid on top of one another. The top sheet may get dusty and loose reflectivity, but the bottom sheet is protected by the top sheet and does not get dusty. Some manufacturers make double and even triple sheet foils just for this purpose.
Radiant barrier chips are being heavily promoted as better option than foil sheets because they are blown 6 to 10 layers deep on top of your attic insulation and are barely affected by dust. These are basically foil shards, although some are metal coated plastic. They work as well as and even better than flat foil barriers. Their drawback is that they are much more expensive than flat foils.
Even more interesting are the liquid radiant barriers. These are known as Interior Radiation Control Coating or IRCCs. These are actually just reflective paints — although most manufacturers avoid using the word paint. They are sprayed, rolled or brushed on the underside of your roof. They can't get dusty. so they lose little effectiveness over time. They do not reflect as much radiation as foil, only 75% compared to as much as 97% for new foil. But, after a few years of dust, the two products have a similar effectiveness, and after a few more years, the paints begin to outperform many of the foils. So in the long term, the paints are probably more effective than either the sheets or chips. Paints need air space below them to work effectively. Which is fine, because all attic insulation needs air space to work effectively.
Not just any reflective coating is an IRCC. To qualify as an IRCC the coating must reduce emissivity to 25% or less. Emissivity refers to the percent of radiant heat that a hot object emits or radiates. It is the opposite of reflectivity. A coating that reflects 75% of the Sun's energy and permits only 15% to "emit" into the attic is considered an IRCC. The coating must have been tested according to the protocol specified in ASTM C1321. If it pases it is considered an IRCC. Otherwise, it is just shiny paint. For comparison, Oriented Strand Board (OSB) used as sheathing on most modern rooms emits 93% of the sun's heat into the attic. The average emissivity of attic insulation, including fiberglass and cellulose, is 85%. So, you can see that a little paint of the right kind can greatly reduce the heat flowing into your attic.
Attic Air Flow
Attic insulation depends on adequate air flow from the vents in the eaves to the vents in the ridge. Insulation should never be packed right to the roof. This is the air that carries away the heat the builds up above the insulation and helps it work better. An air channel is needed to properly ventilate the attic. Without it, insulation can lose up to half its effectiveness.
THE CLEAR WALL R-VALUE OF A 2X4 STUD WALL The study house included an extra 1/2" of plywood sheathing, possibly added when the house was re-sided. This layer is not typical and has been omitted from the table of results reported here.
R-VALUE FOR 2X4 WALL AT CAVITY AREAS
R-VALUE FOR 2X4 WALL AT STUDS
Inside Air Film
Inside Air Film
Blown-in Cellulose Insulation
2x4 SPF Stud
Horizontal Sheathing Boards
Horizontal Sheathing Boards
Felt Building Paper
Felt Building Paper
Cedar Drop Lap Siding
Cedar Drop Lap Siding
Exterior Air Film
Exterior Air Film
TOTAL R-VALUE (CAVITY AREA)
TOTAL R-VALUE (STUD AREA)
CLEAR WALL R-VALUE (COMBINED CAVITIES AND STUDS)
(% stud area x stud R-value) + (% cavity area x cavity R-value) = .17(7.78) + .83(16.9) =
Almost all building codes now require attics to have at least 1" of air space between the roof sheathing and any insulation. Often this is accomplished by the installation of ventilation chutes which protect the air way from accidental blocking by insulation.
Other Wall Materials
Besides insulation there are other materials in your walls that affect the heat barrier. We have already seen that thermal bridges caused by the framing in your
wall reduce its effectiveness as a heat barrier. In contrast, your house siding, wall sheathing, inside plaster or drywall, and a thin film of dead air that clings to both the interior side and exterior side of your wall add some insulating value.
Curious as to how much insulation value a fully insulated old house wall might have when all of the materials in the wall are included in the R-value calculation, University of Oregon scientists did a study of a recently renovated 1913 four-square house to find out the actual R-value of insulated exterior walls. The table at left shows the study's findings.
The non-insulation components of the wall, including the interior and exterior air films added R-3.22 of insulation to the wall, a small increment, but appreciated nonetheless. The difference between the R-value of the insulated wall cavities and the thermal bridges at the studs was significant. Because of their greater conductivity, the studs had an R-value of only 4.56 for a 4" stud compared to R-13.68 for 4" of blown-in cellulose. Despite the loss of insulation caused by traditional old house framing, the average R-value for the clear wall, including both cavities and studs is 15.35, which exceeds the energy code minimum of R-13 in Nebraska by a safe margin.
So it is well worth the cost to weather seal and insulate your old house, even though it was not actually built with effective insulation in mind.
Insulation and Fire Resistance
Insulation is not supposed to be a fire retardant. It is supposed to insulate. But, there is a lot of nonsense floating around about the supposed fire suppression effects of certain insulation materials, so we need to deal with this issue briefly.
What we can reasonably expect from insulation is that it will not add to the risk or severity of fire by being flammable or otherwise harmful. All fire and safety codes contain requirements that make insulation, at worst, fire neutral. All commercial insulation materials, if installed according to code, are fire safe. But, some materials are more fire resistant than others. Rock wool and fiber glass, for example, will not burn at all, and will not emit harmful gases when in contact with fire. The most they will do is melt, and if the fire in your house is hot enough to melt glass and rock (very, very unlikely), you have many more immediate worries than the status of your insulation.
Insulating cellulose products also will not burn, not because the paper used in cellulose is fire resistant, but because it is treated with fire retardant materials. Cellulose will also not give off toxic gases when in contact with flame. The foams won't burn, but when in contact with high heat give off toxic gases. This is why every building code requires them to be covered with a fire-resistant barrier.
So, after many independent studies over many years, we can be confident that none of the materials commonly used as insulation will worsen a fire, but do they have any fire-suppression effects? Will they retard a fire or help keep it from spreading?
Rock and slag wools appear to have some fire protection effect in wood stud walls, increasing the wall's resistance about 54% according to a National Research Council of Canada (NRCC) study.
There are stories floating around that cellulose can also help smother fires in stud wall cavities. The story goes that dense-pack cellulose helps keep oxygen from flowing through the wall to reach the fire, and this keeps the fire from spreading. Fiberglas, more loosely packed, does not have this effect. This conclusion is supposedly supported by an NRCC study of various insulation materials in walls. But, this rumor, frequently repeated on the web-sites of cellulose dealers and installers, is completely untrue. There is no NRCC study that concluded that cellulose has a fire-retardant effect in walls. In fact, the study concluded that in non-bearing walls…
"…the installation of the cellulose fiber insulation (wet sprayed) in the wall cavity did not affect the fire resistance rating of the assembly compared to a non-insulated assembly." (Emphasis supplied).
(M. A. Sultan and G. D. Lougheed, Fire Resistance of Gypsum Board Wall Assemblies, IR-833, CNRC 2002.)
Download and read the CNRC study. Requires Adobe Acrobat Reader. Download Adobe Acrobat Reader).
In ceilings, however, cellulose may be a more effective fire retardant. A 1995 study by the NRCC found that cellulose fiber insulation produced an increase in fire resistance of 104% — that is, more than double that of an uninsulated attic. But, this result does not appear to have ever been replicated by any other study, which, in the scientific community makes it somewhat suspect.
So, here is what we know from actual fire research, as opposed to the rumors and fairy tales:
Rock or slag wool insulation, in certain circumstances, helps walls resist fire penetration. A fire starting on one side of a rock or slag wool insulated wall takes much longer to penetrate the wall to reach the other side. Cellulose and fiber glass do not add any fire protection to a wall, but cellulose may help protect your ceiling and roof in a fire.
Foams give off toxic gases when exposed to flame, and must be covered with a fire-resistant material like gypsum board in order to comply with fire codes. All other materials are at least fire-safe, and do not have to be protected from fire.
This is all we actually know. So don't buy insulation as a fire-retardant. It might be, or it might not be. Right now no one actually knows for sure. Buy insulation to insulate.
